Modularly configured laboratory reactor for the optimization and reproduction of various chemical reactions, mixing and homogenization processes on a lab scale.
The system is particularly characterized by the agitator mounting, which allows for a safe transfer of the higher motor torque.
ULTRA-TURRAX® dispersers, temperature sensors, flow breakers and other accessories can be attached to the open ports of the reactor cover.

• Suitable for vacuum operation

• Solvent- and temperature-resistant perfluoroelastomer (FFPM) seals come into contact with sample

• Infinitely variable speed

• Torque trend display for measuring changes in viscosity

• Microprocessor-controlled speed regulation, enables steady speed, also under load

• Removable WiCo (wiresless controller) for remote and safe use in a fume hood

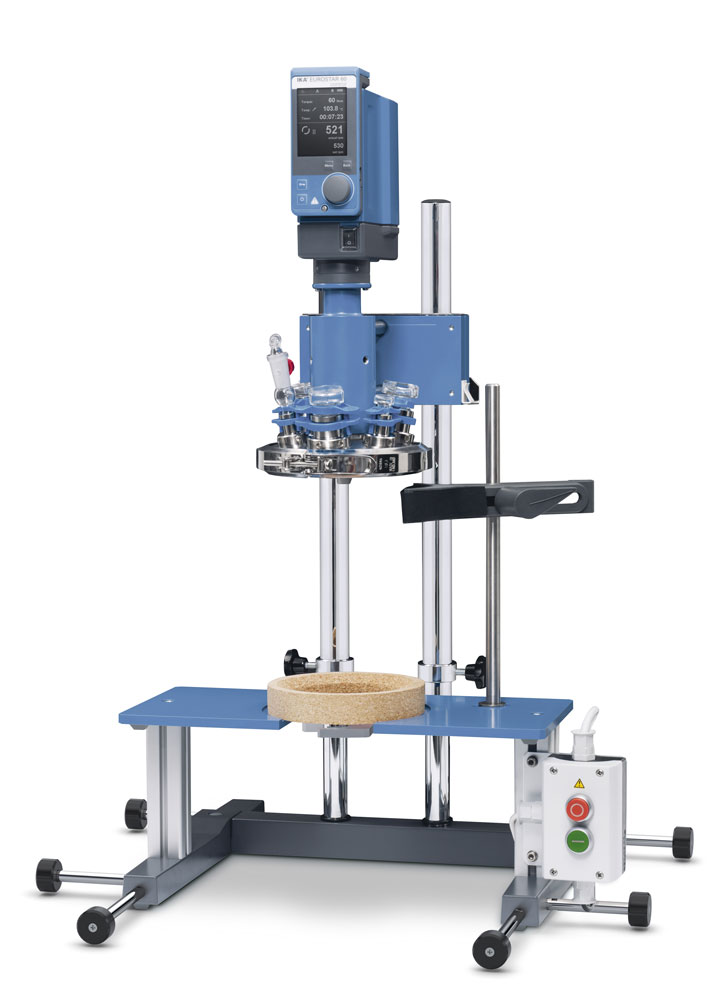

The LR-2.ST laboratory reactor system consists of:

• Stand system

• EUROSTAR 60 control laboratory stirrer with higher speed and no gear ranges

• Safety switch

• Reactor cover

仪器参数

    *小使用容积：500 ml

    *大使用容积：2000 ml

    *低工作温度：室温 °C

    *高工作温度：230 °C

    可达到真空：25 mbar

    *大粘度：150000 mPas

    速度范围：8 - 290 rpm

    升降支架行程：390 mm

    物料接触部分：材料硼硅盐玻璃, FFPM, PTFE, 钢1.4571

    反应容器开口(件数/标准)：3/NS 29/32 2/NS 14/23

    外形尺寸：460 x 1240 x 430 mm

    重量：25 kg

    允许环境温度：5 - 40 °C

    允许相对湿度：80 %

    电压：115 V
